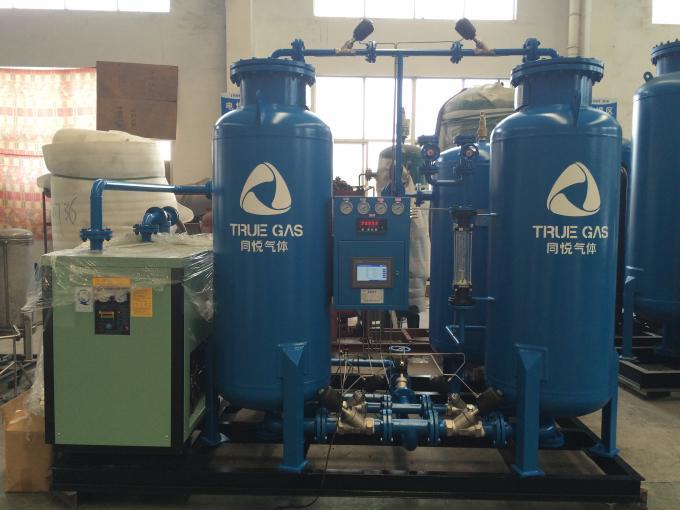

PSA Nitrogen Generation System Purity 95 - 99.9995% Capacity 3 - 2000Nm3/H

Key words:

Nitrogen Generators, Air Compressors, Oxygen and Other Gas Processing Equipment

Product Description

Made in China high qualtiy PSA nitrogen generator purity 95-99.9995% capacity 3-2000Nm3/h





PSA Nitrogen System Equipment Flow Chart



The normal purity Nitrogen system (95%~99.9995%) is consisted of equipment as followings: (according to user different requirements, may has changes)



Compressor Pre-treatments N2 Generator Buffer Tank

User







Technical Features



1).Full Automation

All systems are designed for un-attended operation and automatic Oxygen demand adjustment.



2).Lower Space Requirement

The design and Instrument makes the plant size very compact,assembly on skids,prefabricated from factory.



3).Fast Start-up

Start-up time is only 5 minutes to get desired Oxygen purity.So these units can be switched ON&OFF as per Oxygen demand changes.



4).High Reliabiity

Very reliable for continuous and steady operation with constant Oxygen purity.Plant availability time is better than 99% always.



5).Molecular Sieves life

Expected Molecular sieves life is around 15-years i.e. whole life time of Oxygen plant.So no replacement costs.



6).Adjustable

By altering flow,you can deliver nitrogen with precisely the right purity.



Specifications:



No Model Capacity(Nm3/h) Purity Power(KW) Overall size(mm)

1

2

3

4

TY-3-39

TY-5-29

TY-5-295

TY-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

TY-5-49

TY-8-39

TY-12-295

TY-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

TY-10-49

TY-15-39

TY-25-295

TY-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

TY-15-49

TY-22-39

TY-35-295

TY-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5 2100*1800*2200

17

18

19

20

TY-20-49

TY-30-39

TY-50-295

TY-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5 2200*1800*2200

21

22

23

24

TY-30-49

TY-45-39

TY-75-295

TY-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5 2400*1900*2200

25

26

27

28

TY-40-49

TY-60-39

TY-100-295

TY-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5 2500*2100*2500

29

30

31

32

TY-50-49

TY-70-39

TY-120-295

TY-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

TY-60-49

TY-90-39

TY-160-295

TY-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

37 TY-80-49 80 99.99% 0.5

38

39

40

TY-120-39

TY-200-295

TY-250-29

120

200

250

99.9%

99.5%

99%



0.5



3200*1400*2800

41

42

43

44

TY-100-49

TY-140-39

TY250-295

TY-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%





0.5





3500*1500*2800

... ... ... ... ... ...
