Box Type Beverage Preservation Nitrogen Generator, 570*570*950mm Nitrogen Generator
PSA Nitrogen Generator

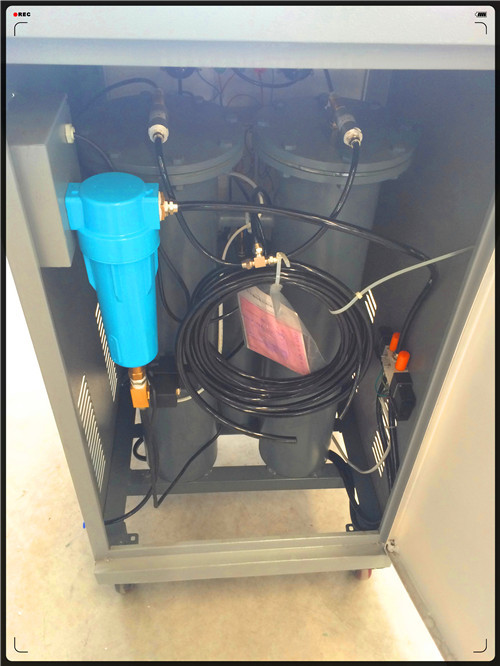

The food nitrogen making machine system is consist of compressed air purifying components, air tanks, gas fraction unit, nitrogen gas buffer tank. The compressed air, which the air compressor provides, enters into the compressed air purifying components at first. The pipe-line filter removes most of the oil, water and dust of the compressed air. And then the compressed air will be further removed the water buy the freeze drier and the oil and dust of it will be removed by the fine filter. And the ultra fine filter will purify the compressed air deeply afterwards.
Based on the system working condition, a compressed air degreaser is designed to prevent trace penetration of the oil and protect the carbon molecular sieve completely. The precisely designed air purifying components can prolong the working life of the carbon molecular sieve. The clean air purified by these components can be used as instrument air.
Nitrogen produced by the food grade nitrogen generator is inert at normal temperature. And bacteria are hard to breed with nitrogen gas surrounded. So, nitrogen gas is widely used for the
preservation and storage of the drinks, fruits, vegetables, pastry, tea, Chinese herbal medicine, flour-made dishes, and can keep the original flavor of the food. The keeping quality is obviously better than refrigerated storage.
When preserve and storage the food, the purity of the nitrogen is not the higher the better. If the surrounded air contains trace oxygen, the fresh-keeping will be best.
To meet the different needs of the food industry, our company developed a nitrogen generator whose nitrogen purity can be adjusted from 95% to 99.99% based on the general nitrogen making machine and the features of the food industry to achieve the best preservation effect.
1. Place of Origin: Jiangsu,China.
2. Brand Name: TRUE.
3. Model No.: TY-3.TY-5
4. Color: Silver,bright and white.
5. Nitrogen flow: 3M3/h.
6. Nitrogen purity: 99.9%.
7. Dew point:-45 degree Celsius.
8. Warranty period: One and a half years.
9. Product life: At least 10years or longer.
10.Outlet pressure: 0.1-0.65Mpa.
11.Material: Stainless steel.
12.Packaging details: Standard,if need wooden,will charge for cost.
13:Delivery time: Within 30days,when received 50% advance payment.
Brief Technical Parameters index
1.) Nitrogen flow: 3Nm3/h.
2.) Nitrogen purity: 99.5-99.9%.
3.) Nitrogen pressure: 0.1-0.65 Mpa.
4.) Dew point: from -60 to -45 degree celsius.
Features of Our Products
Bottled nitrogen without special treatment, has peculiar small and contains much water. Nitrogen gas made by the notrogen making machine does not have impurities or peculiar smell, the gas source is very dry and basically reaches the water-free and low-oxygen state, and the equipment features on small investment and yeild quick returns, convenient operation, low running cost and can greatly stored and preserved under high nitrogen purity, and the best preservation can be achieved if ambient gas contains trace oxygen during the food preservation.
The powder extrusion agglomerate phenomena caused by storage can be reduced and prevented when the nitrogen gas is used.
1. Only equipped with micro- oil or oil-free air compressor. Open the nitrogen generator and then nitrogen will be generated immediately. The nitrogen purity range is adjustable, the regulating range is 95%- 99.99%.
2. The whole set of machine is automatic and equipped with converter circuit energy-saving control to make the whole nitrogen generator machine operate under a economic, effective state.
3. Nitrogen meter continuously monitoring nitrogen purity online. The structure of the equipment is compact and the size is small, so this machine is easy to clean.
4. This machine is optimal designed and durable, and the investment reclaims fast.
1.When receiving debugging information from our customers in the debug phase, we will arrive to the site in 48 hours if the debugging condition limited.
2.When the machine in operation, if you have any questions, please turn to our after-sales for help: 1381217593. We will provide you with reasonable suggestions and help them to solve the problems.
3.To the customers who need to change the accessories, we will send to you as soon as possible.
4.Any operational problems with the machine, we will arrive the site in 24 hours.
5.Any dissatisfaction with our after-sale services, please call our complains hotline:0510-86625066
Nitrogen flow: 0-2,000Nm3/h O2: ≤1ppm Dew point: ≤-70℃ Nitrogen purity: 99.99%-99.999%
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
molecular sieve cave. That’s all for the PSA nitrogen generation process.
|Screw air compressor||ZLS 07A||Juagar||
Rated air capacity:0.6Nm3/min
Oil content in air:≤3ppm
Air temperature:≤ambient temperature +70-80℃
