Blue White PSA Nitrogen Generator Stainless Steel Material CE Approved
1) Brief Introduction for PSA Nitrogen Generator Principles

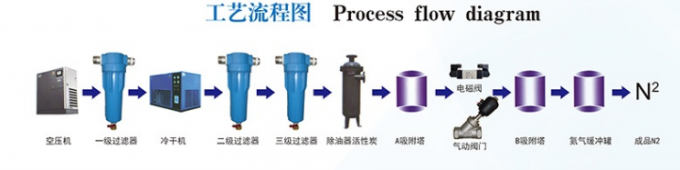

When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and adsorptive capacity to separate oxygen from nitrogen on carbon molecular sieve(CMS). When air is compressed to 0.8MPa, air source enters in pressure-swing adsorption tower for separation after being purified through dry and oil-water separation process (filter). Oxygen molecules are diffused and adsorbed in carbon molecular sieve under pressure. Non-adsorbed nitrogen is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged and purged in adsorption tower under depressurization. Moreover, adsorbent can be recycled.
1. Place of Origin: Jiangsu,China.
2. Brand Name: TRUE.
3. Model No.: TY59-100.
4. Color: Silver,bright and white.
5. Nitrogen flow: 100M3/h.
6. Nitrogen purity: 99.999%.
7. Dew point:-45 degree Celsius.
8. Warranty period: One and a half years.
9. Product life: At least 10years or longer.
10. Outlet pressure: 0.05-0.65Mpa.
11. Material: Stainless steel.
12. Packaging details: Standard,if need wooden,will charge for cost.
13: Delivery time: Within 30days,when received 50% advance payment.
1.) Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.
2.)Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical, urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.
3.)Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.
4)Normal purity N2 generator main parts.
|PSA adsorption tower||Professional design||
|Vortex airflow||Professional design||2 pieces||Technical Carbotech from Germany|
|Self complement compact device||Professional design||2sets||Jiangyin Tongyue|
|single unit processing part||/||1 set||SMC-Japan|
|Sample pressure reduce valve||/||1 piece||SMC-Japan|
|Direct current 24V power||/||1 set||Taiwan-Mingwei|
|DN80||5 pieces||Burkert Germany,approve|
|Magnetic valve||4V210-24V||10 pieces||Taiwan Airtac|
|Metal flow meter||LZZ-40||1 piece||Changzhou Shuanghuan|
|Control system||TPC7062K||1set||(color touch screen )Kunlun Tongtai|
|Muffler||TY-300X||1 set||Jiangyin Tongyue|
|Pipe valve system||bprofessional produce||1 set||Jiangyin Tongyue|
|PLC controller||S7-200||1 set||Siemens Germany|
|Nitrogen analyzer||P860-3N||1 set||Shanghai Changai|
