Producing Gas Plant 0.5kw 50HZ Modular Nitrogen Generator PSA
Key words：
Nitrogen Generators, Air Compressors, Oxygen and Other Gas Processing Equipment
Category：
Product Description

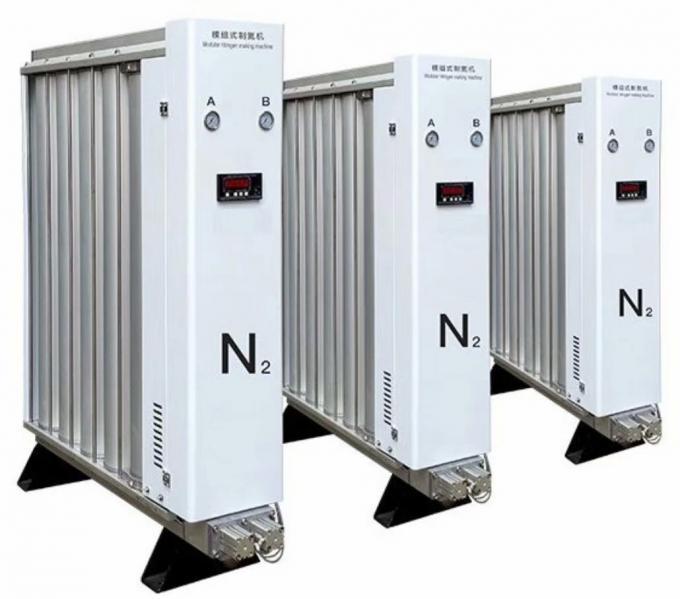

Producing Gas Plant High Quality Purity Made In China Modular Nitrogen Generator
Modular type PSA nitrogen generator
| Model | Specification | |
| G-5MZ | ||
| N2 capacity | Nm3/Hr | 5-20 |
| N2 purity | % | 995-9.99% |
| N2 outlet pressure | Mpa | 0.1~0.6 |
| Air inlet pressure | MPa | 0.7~0.8 |
| Air inlet temperature | ℃ | ≤38 |
| Dew point | ℃ | ≤-40 |
| Working condition | ||
| Air compressor flow | m³/Min | 0.5 |
| Max working pressure | MPa | 0.8 |
| Ambient temperature | ℃ | 40 |
| N2 outlet dia | DN | 15 |
| Air inlet dia | DN | 15 |
| Working cycle | S | 40-55 |
| Regeneration mode | Pressure swing analysis and alternate purging | |
| Voltage: | 220V/50Hz | |
| Pneumatic valve | mm | DN15*5 |
| Muffler | mm | customizing |
| Adsorbent | CMS260 | 1 batch |
| Controller | PLC | Siemens |
