High purity 99.99% PSA Nitrogen Generator For Food Packing Machine Machine line-Jiangsu Tongyue Gas System Co.,ltd.-nitrogen generators-air compressors

Brief Technical Parameters index

1.) Nitrogen flow: 60Nm3/h.
2.) Nitrogen purity: 99.99%.
3.) Nitrogen pressure: 0.1-0.5 Mpa, adjusatble
4.) Nitrogen Gas Dew Point: -28 degree celsius. Can be lower according customer requirement

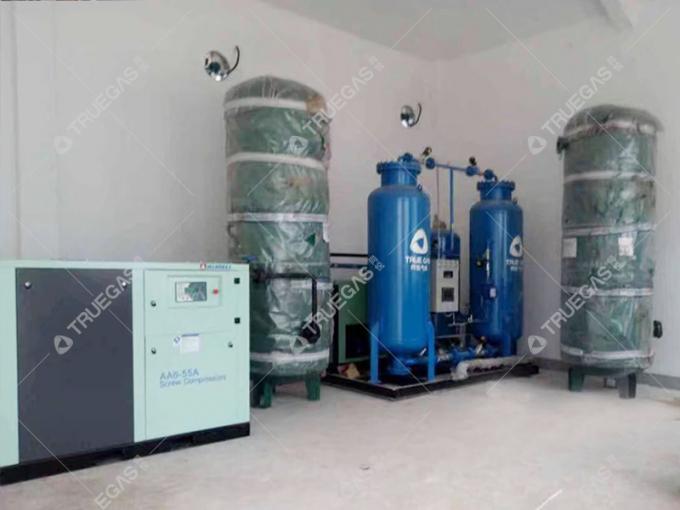

The Whole Nitrogen Generation System Includes :
Air Compressor
Air Storage Tank
Refrigeration dryer& Precision Filters
Nitrogen Generator (Includes control system, adsorption towers, buffer tanks, etc)
Nitrogen Storage Tank
Nitrogen Booster/Compressor (high pressure choose)

Technical Details

Description	Type	Quantity	Remarks
PSA adsorption tower	Professional design	2 pieces /10kg	Jiangyin Shuangqiu
CMS	CMS220	227kg	Made in China
Vortex airflow	Professional design	2 pieces	Technical Carbotech from Germany
Self complement compact device	Professional design	2sets	Jiangyin Tongyue
single unit processing part	/	1 set	SMC-Japan
Sample pressure reduce valve	/	1 piece	SMC-Japan
Direct current 24V power	/	1 set	Taiwan-Mingwei
Pneumatic valves	DN20		Burkert Germany,approve
	DN25	10 Piece

Magnetic valve	3V210-24V	10 pieces	Taiwan Airtac
Metal flow meter	LZZ-40	1 piece	Changzhou Shuanghuan
Control system	TPC7062K	1set	(color touch screen )Kunlun Tongtai
Muffler	TY-300X	1 set	Jiangyin Tongyue
Pipe valve system	bprofessional produce	1 set	Jiangyin Tongyue
PLC controller	S7-200	1 set	Siemens Germany
Nitrogen analyzer	P860-5N	1 set	Shanghai Changai

Features

1. The nitrogen purity can be adjusted from 95%-99.99%. The nitrogen gas is dry and its dew point is low, these help to preserve the food.

2. The machine features excellent cost effectiveness and fast capital payoff.

3. Its exterior is concise and small, so is to be conveniently cleaned and meet the high cleanliness requirement of the food industry.

4. The product is made of high quality equipments and its skillfully process makes itself durable in use.

After Service:

1) Debugging

Nitrogen generator is a simple machine, many customers can debugging themselves according to our drawing and operation manual.

And if you require our technica person come to your factory to guide debugging,it's also be ok.We have a after service team. They can train your operating team in your factory.

2) Spare Parts Service

We will supply spare parts for 1 year free.

3) Maintenance

All the details you can follow our operation manual ,and if can't solve problem, please contact our after service department,they will help to solve your problem.
