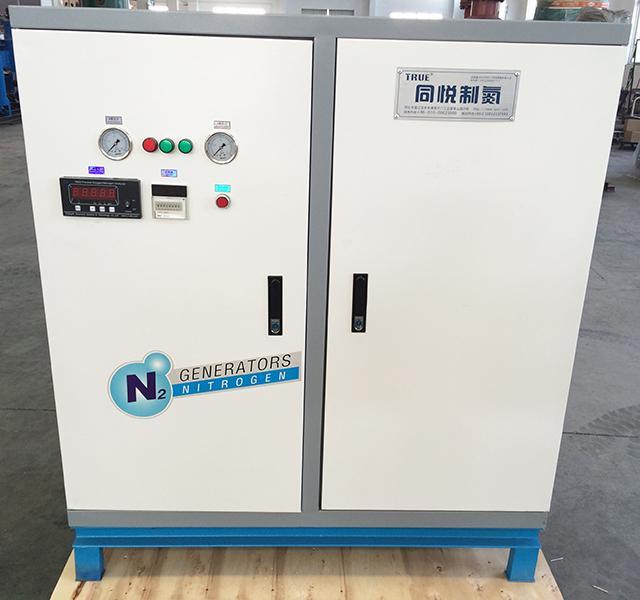

White PSA Nitrogen Generator , 5 Cube Meters Per Hour Nitrogen Output

Key words:

Nitrogen Generators, Air Compressors, Oxygen and Other Gas Processing Equipment

Product Description

PSA Style Nitrogen Generator, 5 Cube Meters Per Hour Nitrogen Output, 99.99% Purity



Nitrogen Generator Capacity: 5Nm3/h

Nitrogen Output Purity: 99.99%

Material: Carbon Steel

Type: Box Type

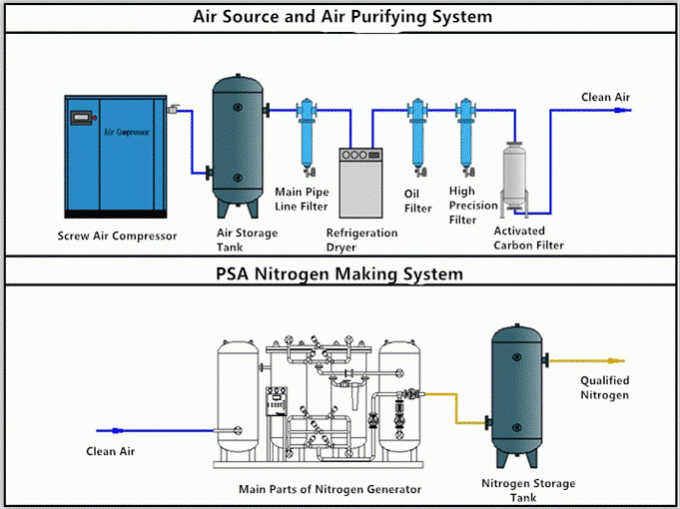

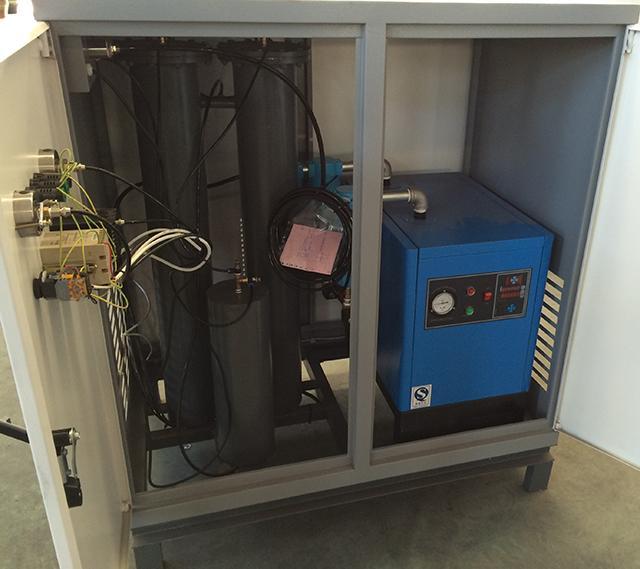

The food nitrogen making machine system is consist of compressed air purifying components, air tanks, gas fraction unit, nitrogen gas buffer tank. The compressed air, which the air compressor provides, enters into the compressed air purifying components at first. The pipe-line filter removes most of the oil, water and dust of the compressed air. And then the compressed air will be further removed the water buy the freeze drier and the oil and dust of it will be removed by the fine filter. And the ultra fine filter will purify the compressed air deeply afterwards.

Based on the system working condition, a compressed air degreaser is designed to prevent trace penetration of the oil and protect the carbon molecular sieve completely. The precisely designed air purifying components can prolong the working life of the carbon molecular sieve. The clean air purified by these components can be used as instrument air.




BROTIE customized PSA nitrogen generator, purity from 95%-99.999% with no purification system, capacity from 1Nm3/h-5000Nm3/h, pressure from 0.1bar to 200bar, uses carbon molecular sieve as sorbent, produces nitrogen by making use of the PSA principle. Professional energy saving design provided with each of BROTIE nitrogen generator system, low air consumption means more economical for customers. The BRO-CONTROL system is provided, all the parameters can be read and the operation can be actualized by one touch only on the Siemens touch screen. Alarming system can work automatically when the purity, the capacity and pressure is lower than required, it means more reliable and more humanistic for customers.
