Laser Cutting Machine N2 3LPM PSA Nitrogen Generator
PSA Nitrogen Generator Introduction
PSA(Pressure Swing Adsorption) is an advanced gas separation technology,based on the physical
adsorption of the internal surface in the internal surface in the adsorbent to gas molecules,separating the gas by the characteristics of absorbing to the quantity of different gas
in general pressure.
The CMS(Carbon Molecular Sieve) is a sorbent picked up from the air,used in separating oxygen
and nitrogen molecular.As picture shown,the adsorption quantity of CMS is greatly higher for
oxygen than nitrogen does under the same pressure.
PSA nitrogen generator produces N2 gas,using air as raw materials and carbon molecular sieve as
Adsorbent,by the selective adsorption of carbon molecular sieve to 02 and N2,achieving the
Separation of the N2 and 02 in the air.
PSA Nitrogen Generator Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
TY-3-39 TY-5-29 TY-5-295 TY-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
TY-5-49 TY-8-39 TY-12-295 TY-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
TY-10-49 TY-15-39 TY-25-295 TY-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
TY-15-49 TY-22-39 TY-35-295 TY-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
TY-20-49 TY-30-39 TY-50-295 TY-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
TY-30-49 TY-45-39 TY-75-295 TY-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
TY-40-49 TY-60-39 TY-100-295 TY-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
TY-50-49 TY-70-39 TY-120-295 TY-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
TY-60-49 TY-90-39 TY-160-295 TY-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
TY-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
TY-120-39 TY-200-295 TY-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
TY-100-49 TY-140-39 TY250-295 TY-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
|
|||||
PSA Nitrogen Generator Features
1. The nitrogen purity can be adjusted from 95%-99.99%. The nitrogen gas is dry and its dew point is low, these help to preserve the food.
2. The machine features excellent cost effectiveness and fast capital payoff.
3. Its exterior is concise and small, so is to be conveniently cleaned and meet the high cleanliness requirement of the food industry.

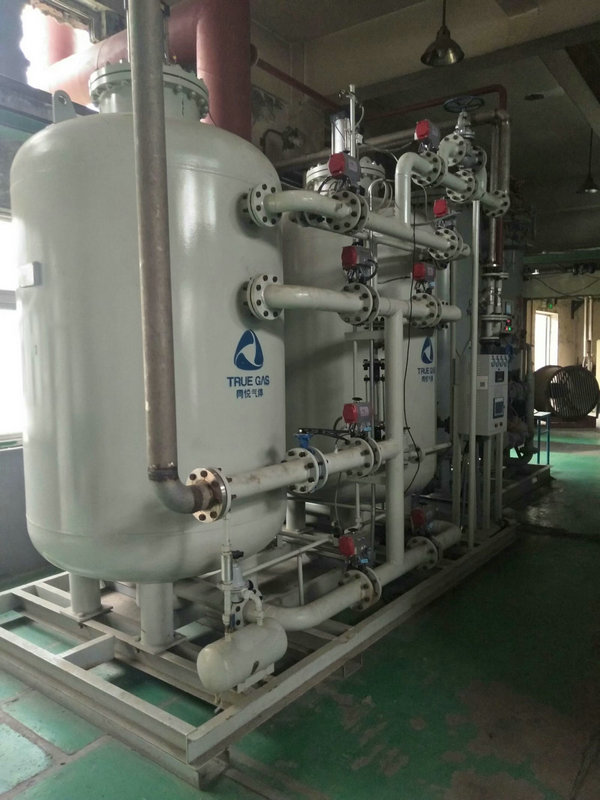

PSA Nitrogen Generator Pictures
