China Manufacture of PSA Nitrogen Generator 3-1000Nm3/h wiht lower Price high quality
PSA Nitrogen Generator
1) Nitrogen runoff: 3 - 2000Nm3/h
2) Nitrogen purity: 98 - 99.999%
3) Nitrogen pressure: 0.1 – 0.7Mpa
4) Dew point: -45°C
5) Purification not needed, as nitrogen of 99.999% purity is produced
On-site Nitrogen plant

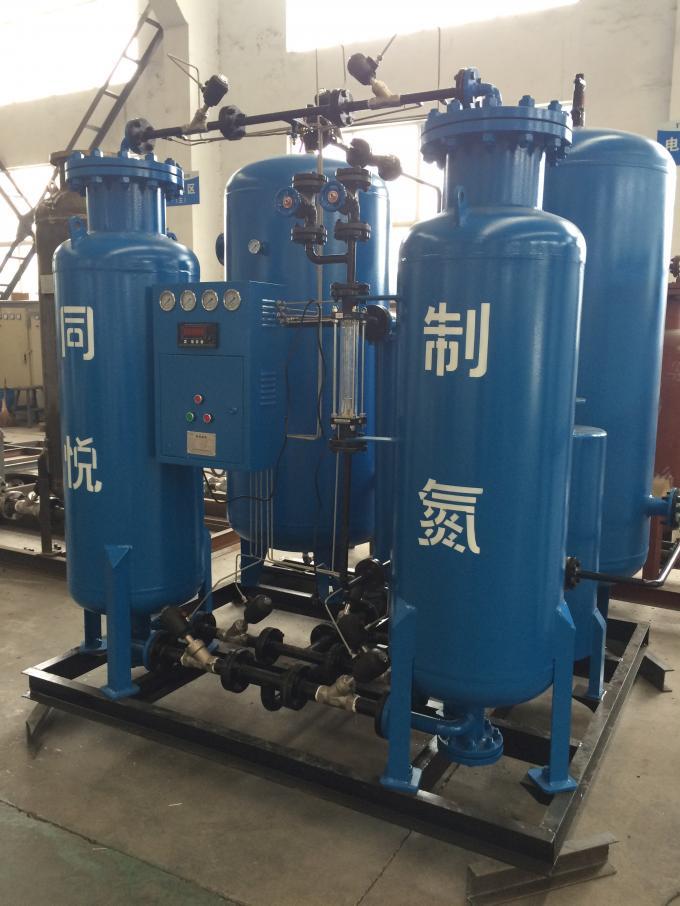

PSA Nitrogen generator
General purpose nitrogen generators
High purity nitrogen generators
Nitrogen Purification Equipment
PSA O2 generators
Industrial oxygen generators
Medical oxygen generators
Membrane O2 generators
Spare parts&Cosumables of N2/ O2 generators
Equipment selection and matching, technician training, installation and commissioning.
Principles of PSA nitrogen generator
PSA nitrogen technology utilizes two towers which are filled with carbon molecular sieve (CMS). Compressed air enters the bottom of one tower. While the smaller oxygen molecules are adsorbed by the CMS, the larger nitrogen molecules pass through the sieve and are stored. Once the CMS of the working tower is saturated with oxygen, the regeneration of the CMS in the tower starts to work by depressurizing, and while another tower is switched to start the process over again.
1. More reliable:
* Tiancheng standardized air separation systems based on proven state of the art technologies in history of many years application in fields.
* Simplified engineering design idea with much less moving parts, guarantees maximum reliability and minimal maintenance
2. More economical:
* More advanced and more economical air separation modules.
* PLCcomposition control system reduces air consumption capacity, saves energy cost.
3. More convenient:
* Control system enables parameters of capacity, purity, and pressure of product gases online display on panel screen, gives running problem alarm, and reminds of maintenance.
* Skid mounted design, easy installation.
The main technical parameter list:
|Producing nitrogen pressure
|Note: for a pillow packaging machine inflatable, form a complete set of the displacement of air machine:≥0.4m³/min,≤The oil content:3ppm|
|Note:for two inflatable pillow packaging machine,form a complete set of air compressor exhaust:≥0.6m³/min,≤The oil content:3ppm|
|Note:for four pillow packaging machine or two vertical packaging machine inflatable,form a complete set of air compressor exhaust:≥0.9m³/min,≤The oil content:3ppm|
|Note:for five pillow packaging machine or three vertical packaging machine inflatable,form a complete set of air compressor exhaust:≥1.25m³/min,≤The oil content:3ppm|
|Note:for seven pillow packaging machine or five vertical packaging machine inflatable,form a complete set of air compressor exhaust:≥1.5m³/min,≤The oil content:3ppm|
|Note:for ten pillow packaging machine or seven vertical packaging machine inflatable,form a complete set of air compressor exhaust:≥2m³/min,
≤The oil content:3ppm
|TY-40 TY-50 TY-60 TY-70 TY-80 TY-100 TY-200
