Customized Industrial Gas Generators Plant PSA Nitrogen Generator For Tungsten Industry
Key words：
Nitrogen Generators, Air Compressors, Oxygen and Other Gas Processing Equipment
Category：
Product Description

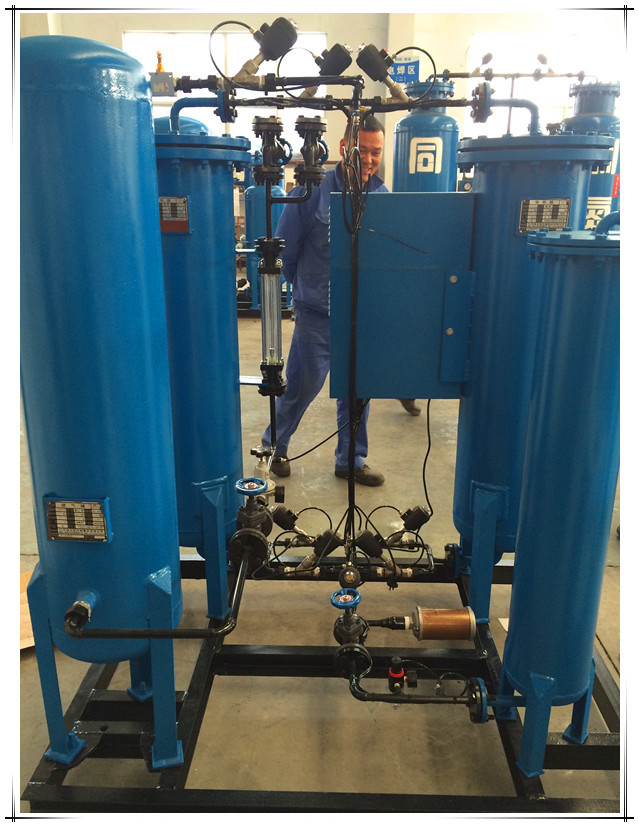

CE/ISO Passed Customized Industrial Nitrogen Generator Plant PSA Nitrogen Generator for Tungsten Industry
Working principle:
It uses carbon molecular sieve as adsorbent, produces nitrogen by making use of the PSA principle. Under certain pressure, carbon molecular sieve has different oxygen/nitrogen adsorption capacity, i.e. much more oxygen adsorption capacity than nitrogen adsorption capacity. PLC controls pneumatic valve open/close to realize two towers alternate adsorption and desorption as per pressure change, carries out oxygen/nitrogen separation and produces nitrogen with desired purity
|
Technical Indicators |
Nitrogen flow: 0-2,000Nm3/h O2: ≤1ppm Dew point: ≤-70℃ Nitrogen purity: 99.99%-99.999%
|
Packaging |
|
|
Size |
Actual |
|
Weight |
Actual |
|
Packaging Details |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
molecular sieve cave. That’s all for the PSA nitrogen generation process.
|
Technical Indicators |
Nitrogen flow: 0-2,000Nm3/h O2: ≤1ppm Dew point: ≤-70℃ Nitrogen purity: 99.99%-99.999%
Equipment Features
Main Features:
1. Good stability, oxygen content can be controlled to be less than 5ppm at any time .
2. High purity, capability of keeping long-term stability when nitrogen purity is 99.9995% .
3. High reliability, manufactured according to the international standard.
| No. | Description | Quantity | Main technical parameter | ||
| Screw air compressor |
SA132A
|
—— | 1 set |
Rated air flow :23.2Nm/min Rated pressure :0.85MPa Rated rotate speed :1490rpm Air oil content :≤3ppm Air tenperature :≤ambient temperature +10-15℃ Cooling type:air cooling Power:Electrical Rated power:132kW Noise:≤85dB(A) |
|
