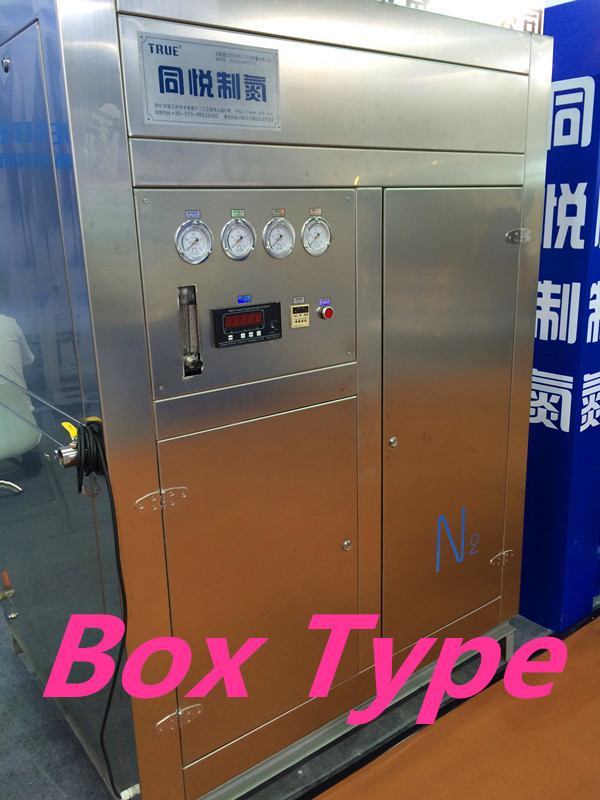

High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing

Key words:

Nitrogen Generators, Air Compressors, Oxygen and Other Gas Processing Equipment

Product Description

High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing





Brief Technical Parameters index



1.)  Nitrogen flow: 1-3000Nm3/h.
2.)  Nitrogen purity: 97-99.9995%.
3.)  Nitrogen pressure: 0.05-1.0 Mpa.
4.)  Dew point: from -60 to -45 degree celsius.


Full Automation


All systems are designed for unattended operation and automatic Nitrogen demand adjustment.
Low Electric Energy Consumption
All systems are designed for Energy-Efficient.
Lower Space Requirement and Short installation period
The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory. Tongyue Machinery has own TRUE brand of gas separation equipments.
Installation is very easy and convenient.
Fast Start-Up
Start-up time is about 30 minutes to get desired Nitrogen purity. So these units can be switched ON & OFF as per Nitrogen
Demand changes.
High Reliability
Very reliable for continuous and steady operation with constant Nitrogen purity. Plant availability time is better than 98% always.
Molecular Sieves Life
Expected Molecular sieves life is more than 10-years i. e. Whole life time of Nitrogen plant. So no replacement costs.
Simple operation and maintenance
All systems are designed by integrated solution for easy-operation and easy-maintenance.





Normal purity N2 generator main parts.



Description Type Quantity Remarks
PSA adsorption tower Professional design

2 pieces

/10kg

Jiangyin Shuangqiu
CMS MSC-3KT-172 1320kg Japan Takeda/Wutian
Vortex airflow Professional design 2 pieces Technical Carbotech from Germany
Self complement compact device Professional design 2sets Jiangyin Tongyue
single unit processing part / 1 set SMC-Japan
Sample pressure reduce valve / 1 piece SMC-Japan
Direct current 24V power / 1 set Taiwan-Mingwei



Pneumatic valves

DN80 5 pieces Burkert Germany,approve
DN40 4 pieces
DN15 1 pieces
Magnetic valve 4V210-24V 10 pieces Taiwan Airtac
Metal flow meter LZZ-40 1 piece Changzhou Shuanghuan
Control system TPC7062K 1set (color touch screen )Kunlun Tongtai
Muffler TY-300X 1 set Jiangyin Tongyue
Pipe valve system bprofessional produce 1 set Jiangyin Tongyue
PLC controller S7-200 1 set Siemens Germany
Nitrogen analyzer P860-3N 1 set Shanghai Changai





Factory name/address Manufactured item annual production capacity



Jiangsu Tongyue Gas system Co., Ltd

2030 Zhengcheng Road, Xishiqiao Town, Jiangyin City

pressure swing adsorption nitrogen geneerator 350 sets/year




Ammonia decomposition hydrogen production equipment

300 sets/year




methanol reforming hydrogen

50 sets/year
  other gas equipment 90 sets/year
