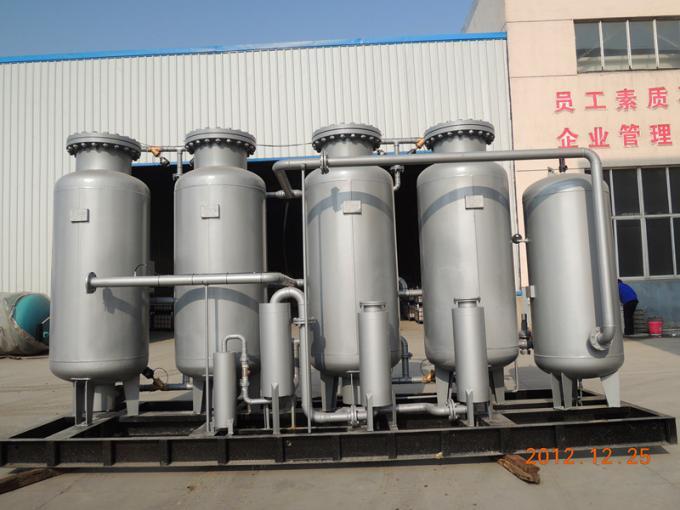

Atmospheric desorption PSA oxygen generator use the clean compressed air as raw material,zeolite molecular sieve as the adsorbing material ,use the pressure swing adsorption principle to get the oxygen under normal temperature.According to the difference adsorbing capacity of oxygen,nitrogen up the zeolite molecular sieve surface,and the difference diffusion rate of oxygen,nitrogen under ZMS,through Programmable Controller control the sequencing valve open/close,complete Pressure adsorption ,Decompression desorption process,complete Separation of oxygen and nitrogen ,get the demanded purity oxygen.

Main characteristic

1. Use the man-machine interface,intelligentize control,operation easy,supply the qualified oxygen in short time.

2. High efficiency fill in ZMS,tighter,solid,longer usage life

3. Use Siemens , OMRON PLC control and Germany BURKERT pneumatic valve to change system automatically,working stable.

4. Pressure,purity,flow can adjustable,to satisfied customers’ requirements.

5. Whole sealing design,Structural tension ,beautiful appearance,save floor area

Technical data Application fields

Purity:90%±3 Widely used in non-ferrous metal Capacity:1-1000Nm3/h metallurgy,chemical industry,

Pressure:0.1-0.6Mpa cement produce,pulp,

Dew point:≤40℃ paper making,glass stoves

Waste water/gas treatment

Application scope

1. Medical.The generator can be set up to fill the hospital pipeline directly and use the filling ramp as a backup system. Oxygen cylinders can be filled simultaneously or during hours with low consumption.

2. Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.
3. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical, urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.
4. Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.

Main parts of nitrogen generator

Project	Type	Quantity	Remark
PSA adsorption tower	Professional design	2pieces/10kg	Special pressure vessel manufacturer
Molecular Sieve	MSC-3KT-172	3500kg	Takeda Japan
Vortex airflow distributor	Professional design	2 pieces	Technical Carbotech from Germany
Self complement compact device	Professional design	2sets	Jiangyin Tongyue
single unit processing part	/	1 set	SMC-Japan
Sample pressure reduce valve	/	1 piece	SMC-Japan
Direct current 24V power	/	1 set	Taiwan-Mingwei
Pneumatic valves Pneumatic valves	DN100	5 pieces	Burkert Germany Burkert Germany
	DN50	4 pieces
	DN20	1 pieces
Magnetic valve	4V210-24V	10 pieces	Taiwan Airtac
Metal flow meter	LZZ-50	1 piece	Changzhou Shuanghuan
Control system	TPC7062K	1set	(color touch screen )Kunlun Tongtai
Muffler	TY-500X	1 set	Jiangyin Tongyue
Pipe valve system	bprofessional produce	1 set	Jiangyin Tongyue
