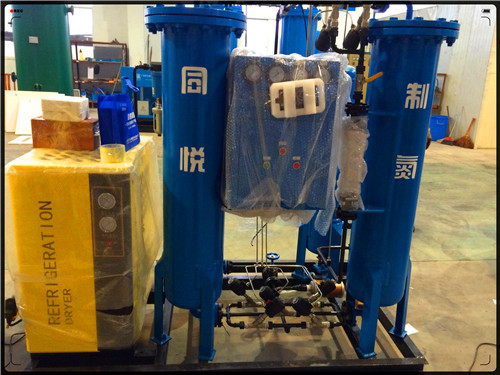

CE PSA Nitrogen Generator System For Medical Equipment Complete System High Purity
Key words:
Nitrogen Generators, Air Compressors, Oxygen and Other Gas Processing Equipment
Category:
Product Description
CE nitrogen gas generator system for medical equipment complete system high purity
1.Principle:
When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and absorptive
capacity to separate oxygen from nitrogen on carbon molecular sieve. When air is compressed to
0.8~1.0MPa, air source enters in pressure swing absorption tower for separation after being purified
through dry and oil water separation process (filter). Oxygen molecules are diffused and absorbed in
carbon molecular sieve under pressure.
Non absorbed nitrogen is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged
and purged in adsorption tower under depressurization. Moreover, adsorbent can be recycled.
2. Application:
1)Food preservation by filling in nitrogen, agitation of beverages.
2)Nitrogen protection and filling of injection solution,transfusion and oral liquid in pharmacy industry
3)Chemical and new material industries: chemical ,urethane elastic fiber, rubber, plastic, tyre,
polyurethane, biological technology, intermediate , etc.
4) Electronic industry: peak welding, circumfluence welding, piezoelectricity, electronic porcelain,
electronic copper tape, battery, electronic alloy material , etc.
3. Main Technical Parameters :
Nitrogen Capacity/Flow rate: 3-3000Nm³/h
Nitrogen Purity: 95%-99.9995% (95%, 97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.999%, 99.9995%)
Air Separation Nitrogen generator 2.Nitrogen flow: 5-360Nm3/h (single set) 3.Nitrogen purity: 99%-99.99% 4.Nitrogen dew point: ≤-40℃ (normal pressure) 5.Nitrogen pressure: ≤0.5Mpa |
|
Specifications:
No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
1 2 3 4 |
TY-3-39 TY-5-29 TY-5-295 TY-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
5 6 7 8 |
TY-5-49 TY-8-39 TY-12-295 TY-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
9 10 11 12 |
TY-10-49 TY-15-39 TY-25-295 TY-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
13 14 15 16 |
TY-15-49 TY-22-39 TY-35-295 TY-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 | 2100*1800*2200 |
17 18 19 20 |
TY-20-49 TY-30-39 TY-50-295 TY-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 | 2200*1800*2200 |
21 22 23 24 |
TY-30-49 TY-45-39 TY-75-295 TY-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 | 2400*1900*2200 |
25 26 27 28 |
TY-40-49 TY-60-39 TY-100-295 TY-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 | 2500*2100*2500 |
29 30 31 32 |
TY-50-49 TY-70-39 TY-120-295 TY-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
33 34 35 36 |
TY-60-49 TY-90-39 TY-160-295 TY-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
37 | TY-80-49 | 80 | 99.99% | 0.5 | |
38 39 40 |
TY-120-39 TY-200-295 TY-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
41 42 43 44 |
TY-100-49 TY-140-39 TY250-295 TY-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
... | ... | ... | ... | ... | ... |
