Type PSA Modular Nitrogen Generator High Purity 99.99%

Key words:

Nitrogen Generators, Air Compressors, Oxygen and Other Gas Processing Equipment

Product Description

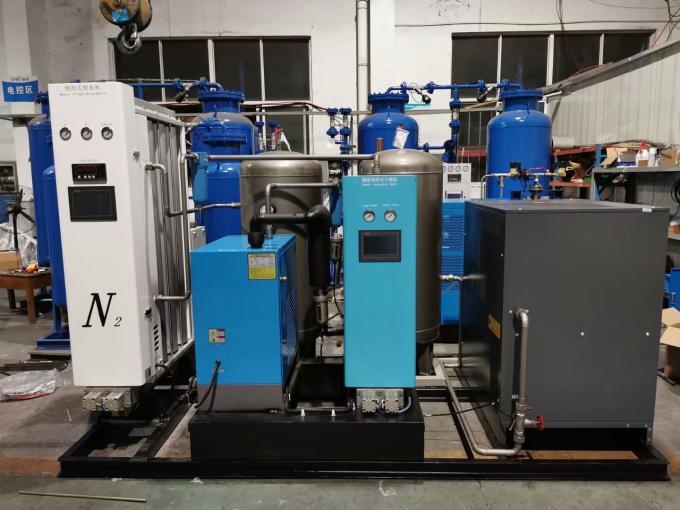

Modular type PSA nitrogen generator



Model Specification
G-5MZ
N2 capacity Nm3/Hr 5
N2 purity % 99.99%
N2 outlet pressure Mpa 0.1~0.6
Air inlet pressure MPa 0.7~0.8
Air inlet temperature ≤38
Dew point ≤-40
Working condition
Air compressor flow m³/Min 0.5
Max working pressure MPa 0.8
Ambient temperature 40
N2 outlet dia DN 15
Air inlet dia DN 15
Working cycle S 40-55
Regeneration mode   Pressure swing analysis and alternate purging
Voltage:   220V/50Hz
Pneumatic valve mm DN15*5
Muffler mm customizing
Adsorbent CMS260 1 batch
Controller PLC Siemens
